Steeda Hardcore S550 Diff Mounting Brackets

£165.38

Want to tear up the pavement and not your differential housing? Steeda has the part for you! Steeda's HARDCORE S550 Mustang Differential Brackets were developed after multiple aluminum differential housings had front ear failures at the track. This simple bolt-in part locks the differential in place and redistributes t

Please note all prices here are estimates and vary depending on size / weight and location.

As a guide, UK Mainland are all addresses not in Northern Ireland, but does include Islands, and Scottish Highlands. Delivery to "Highlands & Islands" can take a few extra days.

EU deliveries cost varies on service requested and weight / dimensions. Normal quote is via the cheapest "standard" delivery. Small Package delivery option is available for EU deliveries under 2 Kg, ideal for small parts.

Local Pickup can only be used in prearranged circumstances, e.g a car show etc.

FREE SHIPPING is available on order over a certain amount (country dependant)

Delivery Service   Time  Price inc VAT
Royal Mail Registered (small items) UK 2-5 days £4.98
Royal Mail Registered (small items) 1-2 days £9
Parcelforce / UPS / DPD / DHL UK Mainland 1-2 days £11.40
Parcelforce / UPS / DPD / DHL Overnight, pre 9am, or AM 1 day  varies on option - ON REQUEST

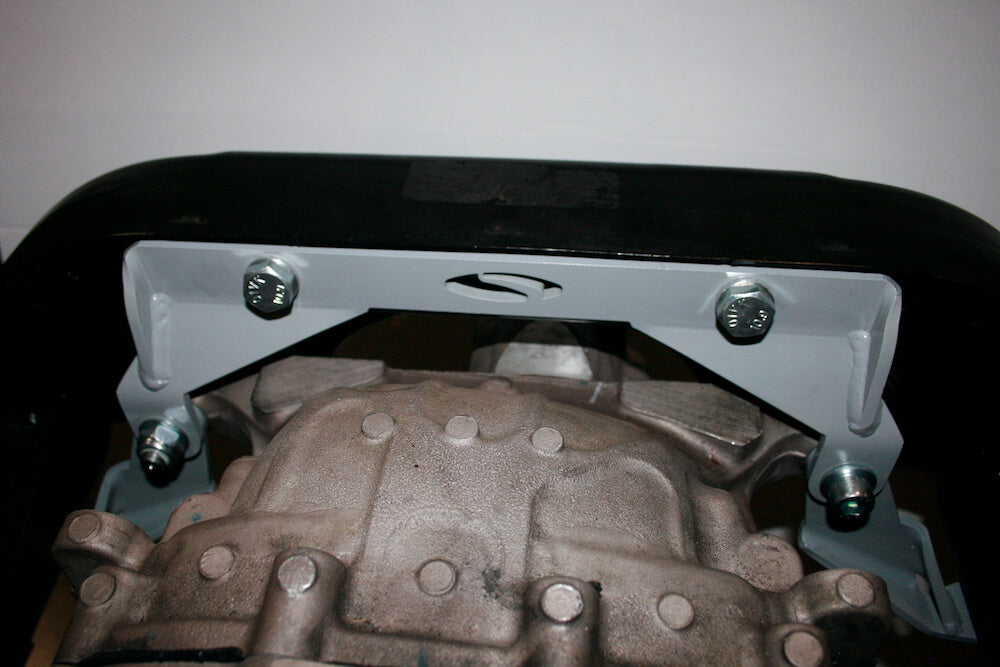

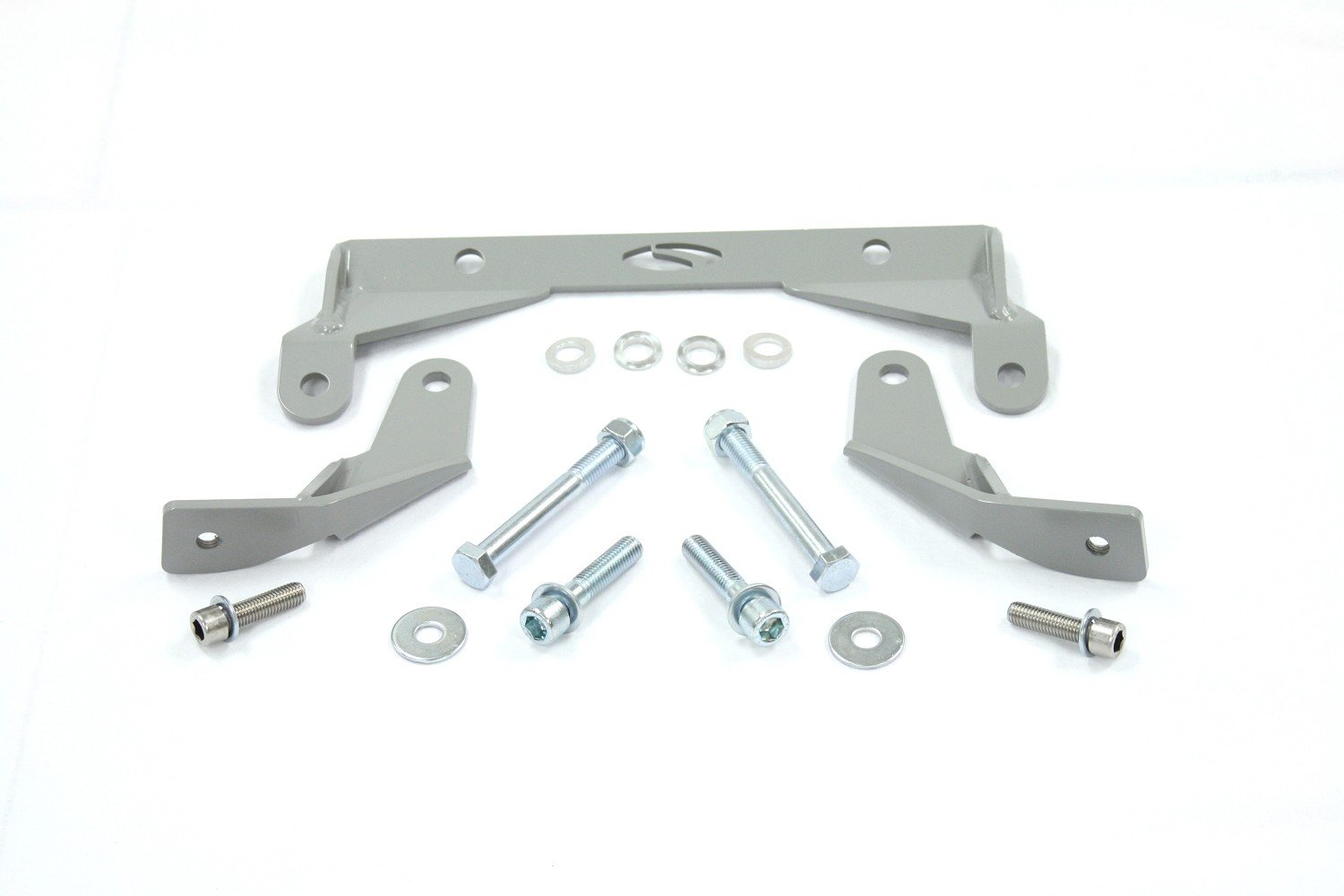

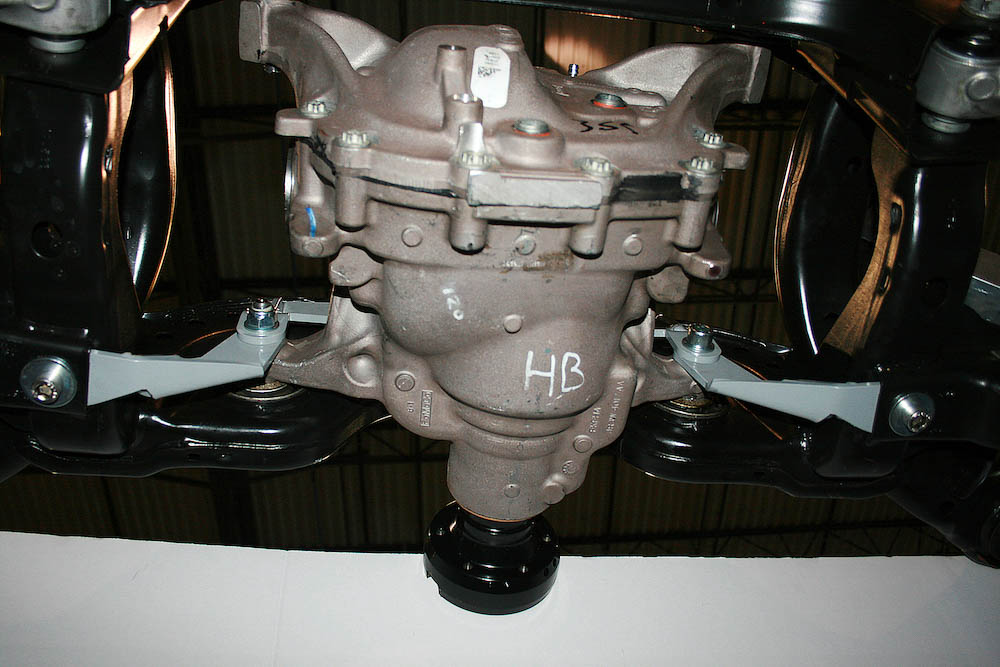

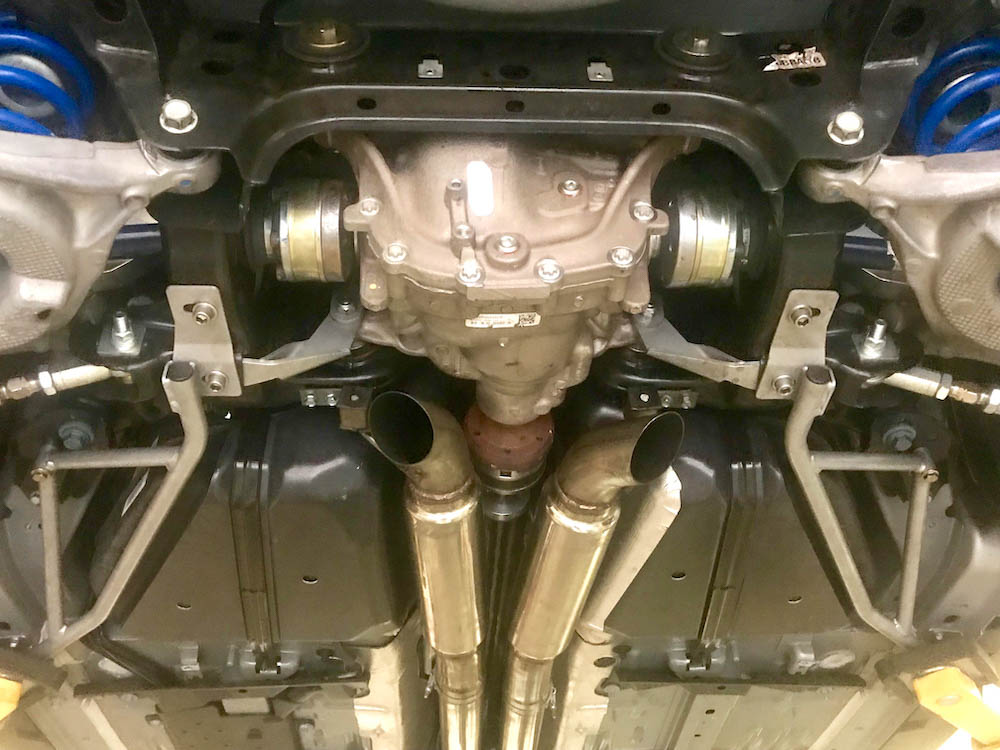

Want to tear up the pavement and not your differential housing? Steeda has the part for you! Steeda's HARDCORE S550 Mustang Differential Brackets were developed after multiple aluminum differential housings had front ear failures at the track. This simple bolt-in part locks the differential in place and redistributes the loads so that the front ears are under less stress. This enables you to run the aluminum differential housing, which shaves 20+ lbs off of the rear of your S550! The Steeda HARDCORE S550 Mustang Differential Brackets are a must for anyone running today's compounds drag radials and slicks. NVH (Noise Vibration Harshness) will be added, but this is a simple install that can be done before a track day and removed when hitting the streets in your daily.

Decrease wheel hop and rear differential movement on your S550 Mustang by adding these braces, differential pinion rise and lateral movement are significantly reduced. Less drivetrain movement means more power to ground. More power to the ground means more enjoyment out of your Mustang.

Steeda’s design has also eliminated the single shear design which exists between the rear differential mounting ear and the rear subframe bushing, replacing it with a triple shear design. This reduces the average stress on the bolt, allowing for 3 times the load capacity! But Steeda didn’t stop there. We have also added upgraded hardware for an added factor of safety, ensuring you confidence when launching your Mustang.

Used in conjunction with our all new 555-4051 - Steeda S550 Mustang THRU Threaded Differential Bolt Upgrade Kit, you’ll have no worries riding your Mustang to fast times."

Product Benefits:
  • Decrease wheel hop
  • Reduced pinion rise and differential bushing deflection
  • Less movement = more power to the ground
  • Eliminates single shear design
  • Upgraded hardware

Part:555-4050
