DBA S550 Ford Mustang GT Slotted Two Piece Brake Discs

£719

DBA Offer a great two piece disc solution at a great price. These are not full floating 2 piece discs like the Steeda and Girodisc offerings but offer the improvements in weight and thermal stability that an aluminium centre hat can offer without the race / track focussed performance of the floating systems and at a mo

Please note all prices here are estimates and vary depending on size / weight and location.

As a guide, UK Mainland are all addresses not in Northern Ireland, but does include Islands, and Scottish Highlands. Delivery to "Highlands & Islands" can take a few extra days.

EU deliveries cost varies on service requested and weight / dimensions. Normal quote is via the cheapest "standard" delivery. Small Package delivery option is available for EU deliveries under 2 Kg, ideal for small parts.

Local Pickup can only be used in prearranged circumstances, e.g a car show etc.

FREE SHIPPING is available on order over a certain amount (country dependant)

Delivery Service   Time  Price inc VAT
Royal Mail Registered (small items) UK 2-5 days £4.98
Royal Mail Registered (small items) 1-2 days £9
Parcelforce / UPS / DPD / DHL UK Mainland 1-2 days £11.40
Parcelforce / UPS / DPD / DHL Overnight, pre 9am, or AM 1 day  varies on option - ON REQUEST

DBA Offer a great two piece disc solution at a great price. These are not full floating 2 piece discs like the Steeda and Girodisc offerings but offer the improvements in weight and thermal stability that an aluminium centre hat can offer without the race / track focussed performance of the floating systems and at a more aggressive price point.

Front and rear discs are available and feature DBA's Kangaroo Paw internal thermal cooling structure and cool slotted pattern.



T3 Slot 48 precision CNC machined slots' Tri-Symmetrical curve slots dampens the vibration harmonics or noise A quieter, responsive and smoother brake pedal feel
Increased number of out-gassing exit points for brake pad friction gasses to escape through Increases the consistency and effectiveness of every brake stop
Universal slot design Eliminates the need for left and right discs

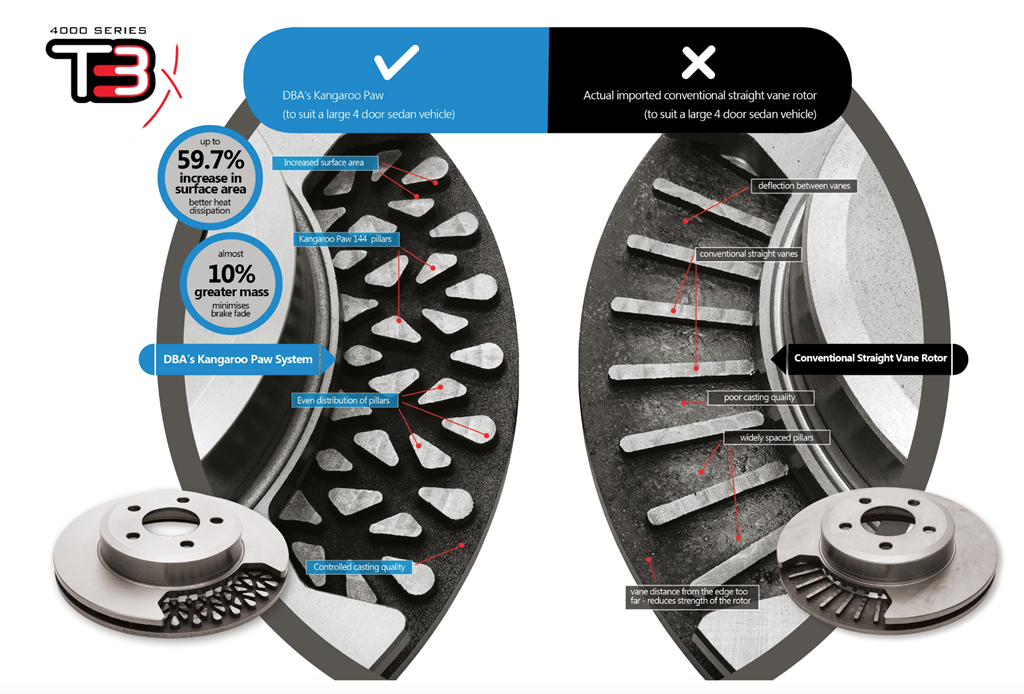

Kangaroo Paw – 144 diamond and tear drop pillar ventilation system Increased surface area resulting in greater heat dissipation Minimises brake fade and increases braking effectiveness
Increased surface area resulting in greater heat dissipation Prolongs service life for both pads and rotors. Reduces mechanical damage and associated costs
XG150 High Carbon Alloyed Iron An increase in thermal capacity property allows the rotor to handle constant extremes of heat over extended periods of time Minimises warping and cracking and prolongs the service life of the rotor
Thermal Stability Profiling Special formulation designed to respond to DBA’s TSP process Minimises warping and cracking and prolongs the service life of the rotor
Thermographic Temperature Monitoring Heat paint markings change colour at specific temperature thresholds Offers the driver a clear indication of peak braking temperatures
When temperature thresholds are exceeded paint markings will permanently change colours Allows the driver to monitor rotor fatigue and decide on rotor replacement and to assist resellers with warranty claims
Paint protection on non-friction areas Reduces corrosion Stops any unsightly rust formation
Enhances appearance Adds value to the product



SPECS:

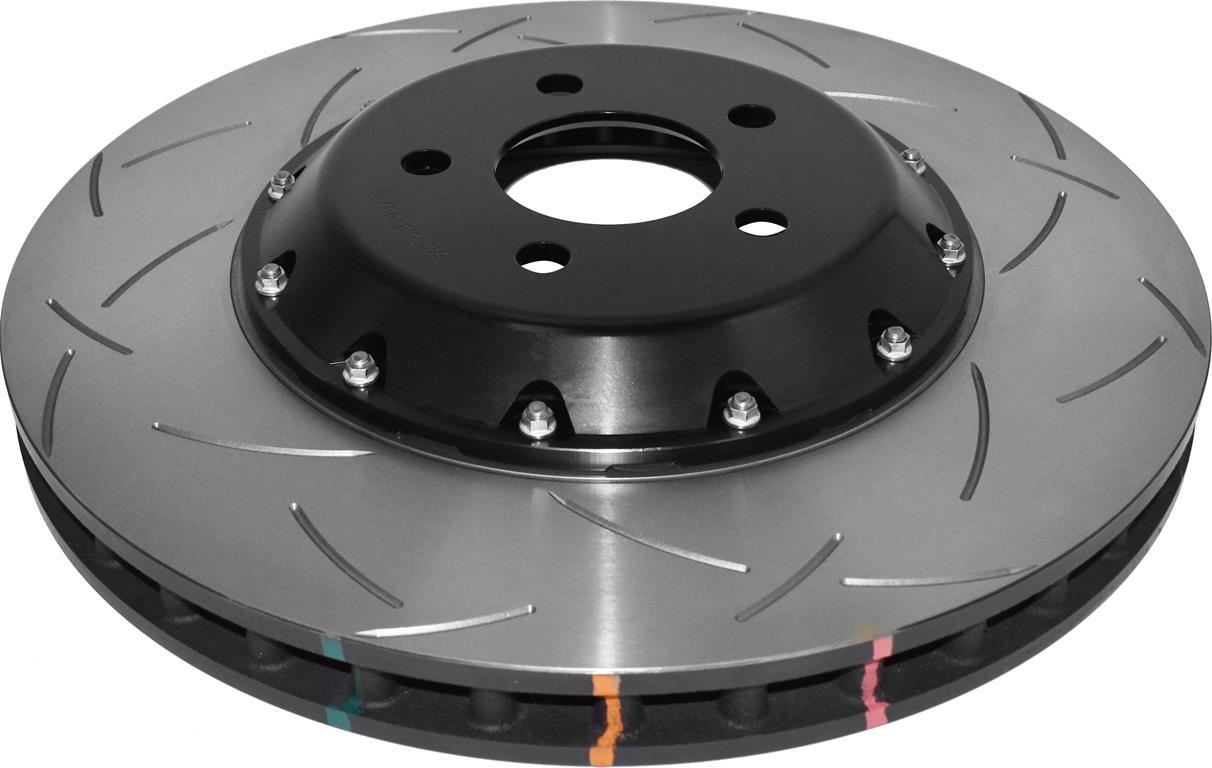

T3 5000 Front Disc

Diameter [mm] 380
Inner Diameter [mm]:71
Min. Thickness [mm]:31.6
Number of Holes:5
PCD:114.3
Thickness [mm]:34
Disc Vent:Kangaroo Paw
Height [mm]:
 64

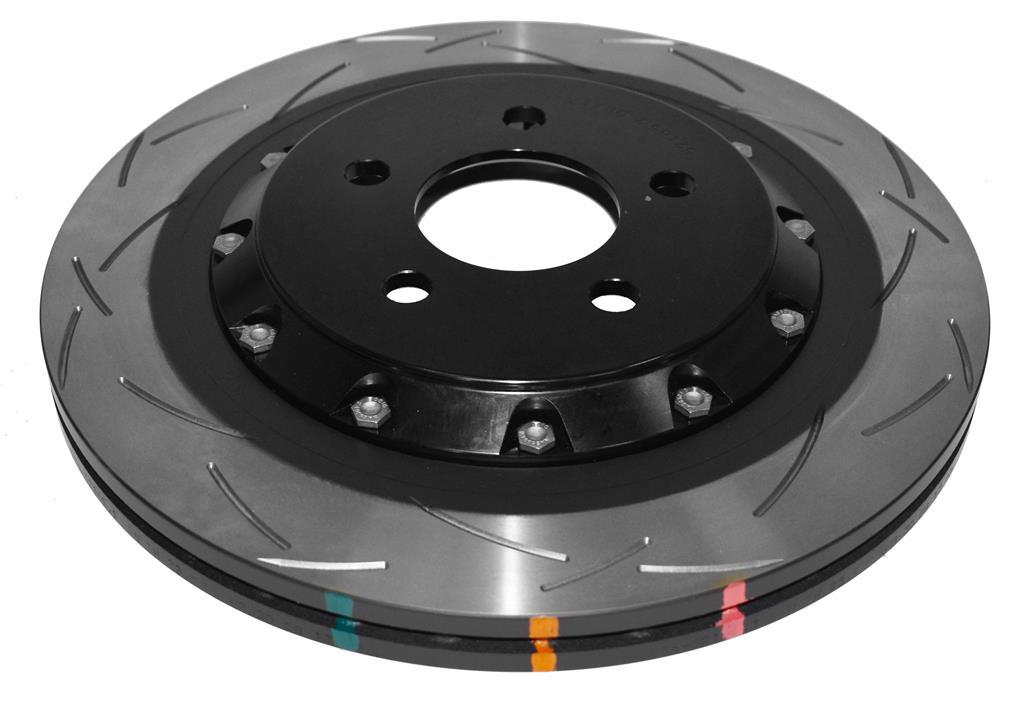

T3 500 Rear Disc
Diameter [mm]: 330
Inner Diameter [mm]: 71.00
Min. Thickness [mm]: 23
Thickness [mm]: 25
Disc Vent: Kangaroo Paw
Height [mm]: 43.70
